#include <Runtime.hpp>

Inheritance diagram for Runtime:

Collaboration diagram for Runtime:

Public Member Functions
virtual	~Runtime ()=default

virtual void	setPinDirection (uint8_t pin, uint8_t direction)=0
	Set pin direction, equivalent of `pinMode` in Arduino. More...

virtual void	setPinState (uint8_t pin, uint8_t state)=0
	Set pin state, equivalent of `digitalWrite` in Arduino. More...

virtual int	getPinState (uint8_t pin)=0
	Get the pin state, equivalent of `digitalRead` in Arduino. More...

virtual int	getAnalogPinState (uint8_t pin)=0
	Get pin's analog (ADC) reading, equivalent of `analogRead` in Arduino. More...

virtual void	setPWM (uint8_t pin, int dutyCycle)=0
	Set PWM state, equivalent of `analogWrite` in Arduino. More...

virtual void	i2cInit ()=0
	Initialize I2C bus as master, equivalent of `Wire.begin` in Arduino. More...

virtual void	i2cBeginTransmission (uint8_t address)=0
	Initiate a transmission to the specified I2C slave device, equivalent of `Wire.beginTransmission` in Arduino. More...

virtual size_t	i2cWrite (uint8_t value)=0
	Send the specified byte via i2c, equivalent of `Wire.write` in Arduino. More...

virtual uint8_t	i2cEndTransmission ()=0
	Ends a transmission to an I2C device equivalent of `Wire.endTransmission` in Arduino. More...

virtual uint8_t	i2cRequestFrom (uint8_t address, uint8_t numberOfBytes)=0
	Request a number of bytes from the specified I2C slave, equivalent of `Wire.requestFrom` in Arduino. More...

virtual int	i2cAvailable ()=0
	Gets the number of bytes available to be retrieved, equivalent of `Wire.available`O in Arduino. More...

virtual int	i2cRead ()=0
	Reads a byte from I2C bus, equivalent of `Wire.read` in Arduino. More...

virtual int8_t	pinToInterrupt (uint8_t pin)=0
	Gets the interrupt number of the specified pin, equivalent of `digitalPinToInterrupt` in Arduino. More...

virtual unsigned long	currentTimeMillis ()=0
	Gets the amount of milliseconds since the microcontroller started running, equivalent of `millis` in Arduino. More...

virtual unsigned long	currentTimeMicros ()=0
	Gets the amount of microseconds since the microcontroller started running, equivalent of `micros` in Arduino. More...

virtual void	delayMillis (unsigned long milliseconds)=0
	Block the execution for the specified number of milliseconds, equivalent of `delay` in Arduino. More...

virtual void	delayMicros (unsigned int microseconds)=0
	Block the execution for the specified number of microseconds, equivalent of `delayMicroseconds` in Arduino. More...

virtual unsigned long	getPulseDuration (uint8_t pin, uint8_t state, unsigned long timeout)=0
	Gets the incomming pulse length in microseconds starting from the nearest `state`, equivalent to `pulseIn` in Arduino. More...

virtual void	setInterrupt (uint8_t pin, InterruptCallback callback, int mode)=0
	Enables an external hardware interrupt and provides a callback, equivalent to `attachInterrupt` in Arduino. More...

virtual uint8_t	getLowState () const =0
	Get the runtime-specific value representing a logical `LOW` voltage state. More...

virtual uint8_t	getHighState () const =0
	Get the runtime-specific value representing a logical `HIGH` voltage state. More...

virtual uint8_t	getOutputState () const =0
	Get the runtime-specific value representing an `OUTPUT` pin state. More...

virtual uint8_t	getInputState () const =0
	Get the runtime-specific value representing an `INPUT` pin state. More...

virtual int	getRisingEdgeMode () const =0
	Get the rising edge constant for setting an interrupt. More...

Detailed Description

An interface to serve as a wrapper for the native runtime environment, greatly inspired by the Arduino library API. Its purpose is to facilitate testing and porting onto different platforms. All used environment (e.g. Arduino) free functions should be included in this interface so they can be mocked in tests and ported to different environments.

Definition at line 35 of file Runtime.hpp.

Constructor & Destructor Documentation

◆ ~Runtime()

virtual Runtime::~Runtime ( )

virtualdefault

Member Function Documentation

◆ currentTimeMicros()

virtual unsigned long Runtime::currentTimeMicros ( )

pure virtual

Gets the amount of microseconds since the microcontroller started running, equivalent of micros in Arduino.

Returns: Microseconds since beginning of operation

Implemented in ArduinoRuntime.

Here is the caller graph for this function:

◆ currentTimeMillis()

virtual unsigned long Runtime::currentTimeMillis ( )

pure virtual

Gets the amount of milliseconds since the microcontroller started running, equivalent of millis in Arduino.

Returns: Milliseconds since beginning of operation

Implemented in ArduinoRuntime.

Here is the caller graph for this function:

◆ delayMicros()

virtual void Runtime::delayMicros ( unsigned int microseconds )

pure virtual

Block the execution for the specified number of microseconds, equivalent of delayMicroseconds in Arduino.

Parameters

microseconds How much time to block execution in microseconds

Implemented in ArduinoRuntime.

Here is the caller graph for this function:

◆ delayMillis()

virtual void Runtime::delayMillis ( unsigned long milliseconds )

pure virtual

Block the execution for the specified number of milliseconds, equivalent of delay in Arduino.

Parameters

milliseconds How much time to block execution in milliseconds

Implemented in ArduinoRuntime.

Here is the caller graph for this function:

◆ getAnalogPinState()

virtual int Runtime::getAnalogPinState ( uint8_t pin )

pure virtual

Get pin's analog (ADC) reading, equivalent of analogRead in Arduino.

Parameters

pin	Pin to get ADC reading

Returns: ADC reading

Implemented in ArduinoRuntime.

Here is the caller graph for this function:

◆ getHighState()

virtual uint8_t Runtime::getHighState ( ) const

pure virtual

Get the runtime-specific value representing a logical HIGH voltage state.

Returns: uint8_t The HIGH value

Implemented in ArduinoRuntime.

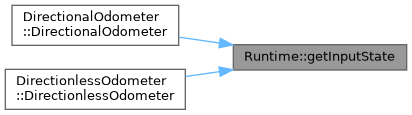

◆ getInputState()

virtual uint8_t Runtime::getInputState ( ) const

pure virtual

Get the runtime-specific value representing an INPUT pin state.

Returns: uint8_t The INPUT state

Implemented in ArduinoRuntime.

◆ getLowState()

virtual uint8_t Runtime::getLowState ( ) const

pure virtual

Get the runtime-specific value representing a logical LOW voltage state.

Returns: uint8_t The LOW value

Implemented in ArduinoRuntime.

◆ getOutputState()

virtual uint8_t Runtime::getOutputState ( ) const

pure virtual

Get the runtime-specific value representing an OUTPUT pin state.

Returns: uint8_t The OUTPUT state

Implemented in ArduinoRuntime.

◆ getPinState()

virtual int Runtime::getPinState ( uint8_t pin )

pure virtual

Get the pin state, equivalent of digitalRead in Arduino.

Parameters

pin	Pin to get state

Returns: Pin's state (i.e. HIGH or LOW)

Implemented in ArduinoRuntime.

Here is the caller graph for this function:

◆ getPulseDuration()

virtual unsigned long Runtime::getPulseDuration	(	uint8_t	pin,
		uint8_t	state,
		unsigned long	timeout
	)

pure virtual

Gets the incomming pulse length in microseconds starting from the nearest state, equivalent to pulseIn in Arduino.

Parameters

pin	The pin to expect the pulse
state	The state (`HIGH` or `LOW`) of the incoming pulse
timeout	How long to wait for a complete pulse in microseconds

Returns: 0 if no pulse arrived otherwise the pulse length in in microseconds

Implemented in ArduinoRuntime.

Here is the caller graph for this function:

◆ getRisingEdgeMode()

virtual int Runtime::getRisingEdgeMode ( ) const

pure virtual

Get the rising edge constant for setting an interrupt.

Returns: int The rising edge mode

Implemented in ArduinoRuntime.

◆ i2cAvailable()

virtual int Runtime::i2cAvailable ( )

pure virtual

Gets the number of bytes available to be retrieved, equivalent of Wire.availableO in Arduino.

Returns: The number of bytes available for reading

Implemented in ArduinoRuntime.

Here is the caller graph for this function:

◆ i2cBeginTransmission()

virtual void Runtime::i2cBeginTransmission ( uint8_t address )

pure virtual

Initiate a transmission to the specified I2C slave device, equivalent of Wire.beginTransmission in Arduino.

Parameters

address I2C address to begin a transmission to

Implemented in ArduinoRuntime.

Here is the caller graph for this function:

◆ i2cEndTransmission()

virtual uint8_t Runtime::i2cEndTransmission ( )

pure virtual

Ends a transmission to an I2C device equivalent of Wire.endTransmission in Arduino.

Returns: Transmission status

Implemented in ArduinoRuntime.

Here is the caller graph for this function:

◆ i2cInit()

virtual void Runtime::i2cInit ( )

pure virtual

Initialize I2C bus as master, equivalent of Wire.begin in Arduino.

Implemented in ArduinoRuntime.

◆ i2cRead()

virtual int Runtime::i2cRead ( )

pure virtual

Reads a byte from I2C bus, equivalent of Wire.read in Arduino.

Returns: Byte read from I2C

Implemented in ArduinoRuntime.

Here is the caller graph for this function:

◆ i2cRequestFrom()

virtual uint8_t Runtime::i2cRequestFrom	(	uint8_t	address,
		uint8_t	numberOfBytes
	)

pure virtual

Request a number of bytes from the specified I2C slave, equivalent of Wire.requestFrom in Arduino.

Parameters

address	I2C slave device address
numberOfBytes	Number of bytes to request

Returns: Number of bytes returned from the slave

Implemented in ArduinoRuntime.

Here is the caller graph for this function:

◆ i2cWrite()

virtual size_t Runtime::i2cWrite ( uint8_t value )

pure virtual

Send the specified byte via i2c, equivalent of Wire.write in Arduino.

Parameters

value Byte to send

Returns: Number of bytes sent

Implemented in ArduinoRuntime.

Here is the caller graph for this function:

◆ pinToInterrupt()

virtual int8_t Runtime::pinToInterrupt ( uint8_t pin )

pure virtual

Gets the interrupt number of the specified pin, equivalent of digitalPinToInterrupt in Arduino.

Parameters

pin	Pin to get interrupt number

Returns: Interrupt number

Implemented in ArduinoRuntime.

◆ setInterrupt()

virtual void Runtime::setInterrupt	(	uint8_t	pin,
		InterruptCallback	callback,
		int	mode
	)

pure virtual

Enables an external hardware interrupt and provides a callback, equivalent to attachInterrupt in Arduino.

Parameters

pin	The interrupt pin to attach the interrupt
callback	The callback to be executed
mode	The state of the pin to run the callback

Implemented in ArduinoRuntime.

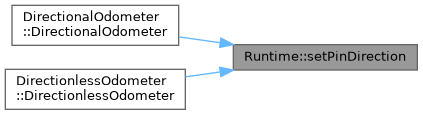

◆ setPinDirection()

virtual void Runtime::setPinDirection	(	uint8_t	pin,
		uint8_t	direction
	)

pure virtual

Set pin direction, equivalent of pinMode in Arduino.

Parameters

pin	The pin to set direction
direction	The pin's direction (e.g. `INPUT`, `OUTPUT` etc)

Implemented in ArduinoRuntime.

◆ setPinState()

virtual void Runtime::setPinState	(	uint8_t	pin,
		uint8_t	state
	)

pure virtual

Set pin state, equivalent of digitalWrite in Arduino.

Parameters

pin	The pin to set state
state	The pin's state (i.e. `HIGH` or `LOW`)

Implemented in ArduinoRuntime.

Here is the caller graph for this function:

◆ setPWM()

virtual void Runtime::setPWM	(	uint8_t	pin,
		int	dutyCycle
	)

pure virtual

Set PWM state, equivalent of analogWrite in Arduino.

Parameters

pin	Pin to set PWM
dutyCycle	Duty cycle of PWM

Implemented in ArduinoRuntime.

Here is the caller graph for this function:

The documentation for this interface was generated from the following file:

src/runtime/Runtime.hpp
